Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX6225AMJA
- Part Number MAX6225AMJA
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - 8-CERDDIP
- Released Date Mar 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX6225AMJA Details
-
Manufacturer Part Number:
MAX6225AMJA
-
Brand Name:
Analog Devices Inc
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-CERDIP-300_MIL
-
Package Description:
CERDIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
8-CERDIP-300_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1996-09-23
-
Manufacturer:
Analog Devices Inc
MAX6225AMJA Frequently Asked Questions (FAQs)
-
The MAX6225AMJA requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN pin and GND pin to filter out noise.
-
To ensure stability, it is recommended to follow the recommended layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the recommended range. Additionally, it is recommended to add a small resistor (around 1kΩ) in series with the output capacitor to prevent oscillation.
-
The MAX6225AMJA can handle input voltages up to 12V, but it is recommended to operate within the recommended input voltage range of 4.5V to 11V for optimal performance and reliability.
-
The MAX6225AMJA is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at high temperatures to ensure reliability. It is also recommended to use a heat sink or thermal pad to dissipate heat.
-
To troubleshoot issues with the MAX6225AMJA, it is recommended to check the input voltage, output voltage, and output current using an oscilloscope or multimeter. Check for noise, oscillation, or voltage droop, and ensure that the device is properly soldered and laid out. Also, check the output capacitor value and ESR, and ensure that it meets the recommended specifications.
Trust Checks
Community Provided
System Verified
Community Approved
MAX6225AMJA Overview

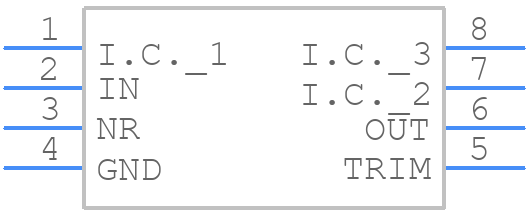

Use the download button to access the MAX6225AMJA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX62,
or try a keyword search, such as Voltage References
