MAX6225BCSA+ - Analog Devices

Description: MAX6225BCSA+, Precision Voltage Reference 2.5V ±0.02% 15mA 36 V max. 8-Pin SO

Download MAX6225BCSA+ Model

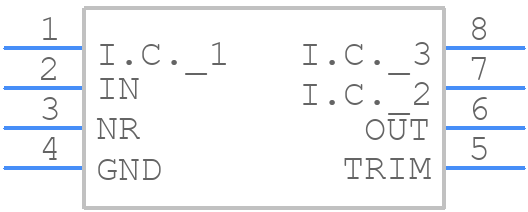

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6225BCSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX6225BCSA+ - Analog Devices  - 3D model - Small Outline Packages - S8+5
click to zoom

MAX6225BCSA+ Details

  • Manufacturer Part Number:

    MAX6225BCSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.503 V

  • Output Voltage-Min:

    2.497 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.12%

  • Width:

    3.9 mm

MAX6225BCSA+ Frequently Asked Questions (FAQs)

  • The MAX6225BCSA+ requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the bypass capacitors close to the device.
  • The output voltage of the MAX6225BCSA+ can be adjusted using the FB pin. To select the correct output voltage, you need to calculate the required resistor divider values using the formula provided in the datasheet. You can also use online calculators or simulation tools to help with the calculation.
  • The MAX6225BCSA+ has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • To ensure stability, it is recommended to follow the layout guidelines, use a solid ground plane, and place the bypass capacitors close to the device. Additionally, the output capacitor should be selected based on the output voltage and current requirements. The datasheet provides guidelines for selecting the output capacitor.
  • The typical dropout voltage of the MAX6225BCSA+ is around 200mV at a load current of 150mA. However, this value can vary depending on the input voltage, output voltage, and load current. The datasheet provides a graph showing the dropout voltage vs. load current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6225BCSA+ Overview

Use the download button to access the MAX6225BCSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX62, or try a keyword search, such as Voltage References
