MAX6250ACPA+ - Analog Devices

Description: MAX6250ACPA+, Voltage Reference 5V 0.02% 15mA 40 V max. 8-Pin PDIP N

Download MAX6250ACPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

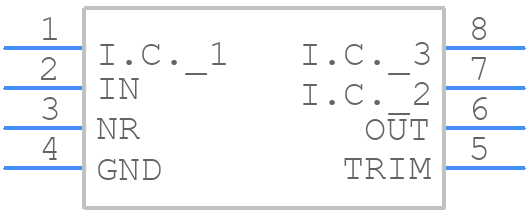

MAX6250ACPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6250ACPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8+3_2020
click to zoom
3D Models
MAX6250ACPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8+3_2020
click to zoom

MAX6250ACPA+ Details

  • Manufacturer Part Number:

    MAX6250ACPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, PLASTIC, MS-001AB, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    5.001 V

  • Output Voltage-Min:

    4.999 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.02%

  • Width:

    7.62 mm

MAX6250ACPA+ Frequently Asked Questions (FAQs)

  • The MAX6250ACPA+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN pin and GND to filter out noise.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input voltage should be well-regulated and free of noise. It is also recommended to add a 1uF ceramic capacitor between the VOUT pin and GND to improve stability.
  • The maximum input voltage that can be applied to the MAX6250ACPA+ is 14V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a voltage limiter to ensure the input voltage does not exceed the maximum rating.
  • The output voltage of the MAX6250ACPA+ can be calculated using the following formula: VOUT = (VIN x (1 + R1/R2)) - 0.5V, where R1 and R2 are the resistors used to set the output voltage. The output voltage can be adjusted by changing the values of R1 and R2.
  • The maximum output current that the MAX6250ACPA+ can deliver is 500mA. Exceeding this current can cause the device to overheat and reduce its lifespan. It is recommended to use a current limiter or a fuse to protect the device from overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6250ACPA+ Overview

Use the download button to access the MAX6250ACPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX62, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
