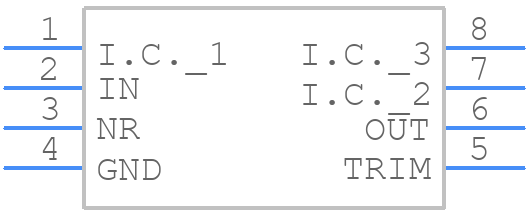

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX6250AMJA
- Part Number MAX6250AMJA
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - J8-2
- Released Date Apr 17, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX6250AMJA Details
-
Manufacturer Part Number:
MAX6250AMJA
-
Brand Name:
Analog Devices Inc
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-CERDIP-300_MIL
-
Package Description:
CERDIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
8-CERDIP-300_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1996-09-23
-
Manufacturer:
Analog Devices Inc
MAX6250AMJA Frequently Asked Questions (FAQs)
-
The MAX6250AMJA is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
-
To ensure stability, it is essential to follow the compensation guidelines provided in the datasheet. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them close to the device. Additionally, the power supply decoupling capacitors should be placed close to the device, and the input and output traces should be kept short and away from noise sources.
-
The MAX6250AMJA has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage rating can damage the device.
-
The MAX6250AMJA is rated for operation from -40°C to +125°C. However, the device's performance and accuracy may degrade at high temperatures. It is essential to follow the thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments.
-
To troubleshoot issues with the MAX6250AMJA, it is essential to follow a systematic approach. This includes checking the power supply voltage, input voltage, and output voltage, as well as verifying the compensation components and layout. Additionally, using oscilloscopes and other diagnostic tools can help identify the root cause of the issue.
Trust Checks
Community Provided
System Verified
Community Approved
MAX6250AMJA Overview
Use the download button to access the MAX6250AMJA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX62,
or try a keyword search, such as Voltage References
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
