MAX6250BCSA+T - Analog Devices

Description: Voltage References 2.5V/+4.096V/5V Voltage Ref

Download MAX6250BCSA+T Model

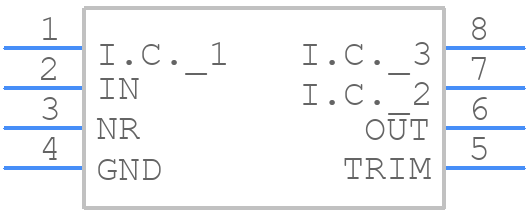

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6250BCSA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX6250BCSA+T - Analog Devices  - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX6250BCSA+T Details

  • Manufacturer Part Number:

    MAX6250BCSA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SSOP8,.3

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    5.005 V

  • Output Voltage-Min:

    4.995 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MAX6250BCSA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6250BCSA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure stability, the MAX6250BCSA+T requires a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm. The device is also sensitive to the quality of the input capacitor, which should have a low ESR and be placed close to the device. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The MAX6250BCSA+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • Yes, the MAX6250BCSA+T is suitable for high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it has undergone rigorous testing to ensure its performance and reliability. However, it is recommended to consult with Analog Devices Inc. for specific requirements and qualifications for these applications.
  • To troubleshoot issues with the MAX6250BCSA+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check the PCB layout for any signs of damage or contamination. Use an oscilloscope to measure the output voltage and current waveforms, and look for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and tips.
