MAX6301CUA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6301CUA+T - MPU SUPERVISOR, 5.5V, UMAX-8

Download MAX6301CUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

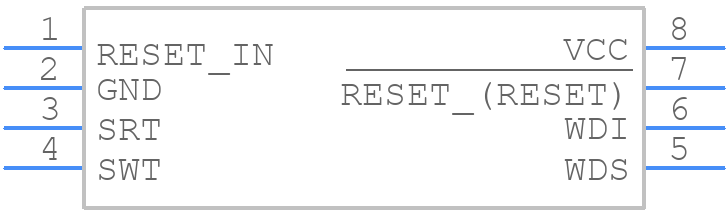

MAX6301CUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6301CUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax
click to zoom
3D Models
MAX6301CUA+T - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax
click to zoom

MAX6301CUA+T Details

  • Manufacturer Part Number:

    MAX6301CUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.007 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6301CUA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6301CUA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down, the MAX6301CUA+T requires a monotonic power supply ramp-up and ramp-down. A soft-start circuit can be used to limit the inrush current during power-up. Additionally, the device should be powered down by reducing the input voltage to 0V before removing the input power.
  • The MAX6301CUA+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage accuracy may be affected.
  • Yes, the MAX6301CUA+T is suitable for high-reliability and high-availability applications due to its high MTBF (mean time between failures) and low FIT (failure in time) rate. However, additional design considerations and testing may be required to ensure the device meets the specific reliability and availability requirements of the application.
  • To troubleshoot issues with the MAX6301CUA+T, start by verifying the input voltage and current, checking for proper PCB layout and decoupling, and ensuring the device is properly powered up and powered down. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for additional troubleshooting guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
