MAX6301ESA+ - Analog Devices

Description: MAX6301ESA+, Processor Supervisor Active Low, Open Drain, Reset 8-Pin SOIC

Download MAX6301ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

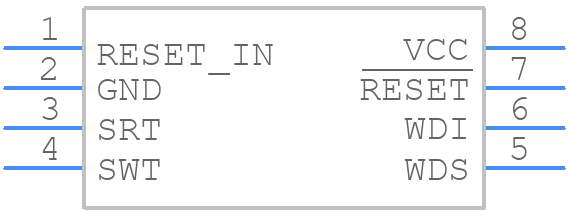

MAX6301ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6301ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX6301ESA+
click to zoom
3D Models
MAX6301ESA+ - Analog Devices - 3D model - Small Outline Packages - MAX6301ESA+
click to zoom

MAX6301ESA+ Details

  • Manufacturer Part Number:

    MAX6301ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.007 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX6301ESA+ Frequently Asked Questions (FAQs)

  • The MAX6301ESA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output pins separate, using a solid ground plane, and placing the device close to the power source. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX6301ESA+ requires a stable power supply and proper biasing to operate correctly. Ensure that the input voltage is within the recommended range (2.7V to 5.5V), and that the device is properly decoupled with capacitors (e.g., 10uF and 100nF) to reduce noise and ripple. Additionally, ensure that the bias pins (VCC and GND) are properly connected and that the device is not exposed to excessive voltage or current.
  • The MAX6301ESA+ has a maximum output current capability of 150mA per channel. However, it is recommended to derate the output current based on the ambient temperature and the device's thermal characteristics to ensure reliable operation.
  • The MAX6301ESA+ can be programmed for custom voltage settings using an external resistor divider network connected to the VSET pin. The resistor values can be calculated using the formula provided in the datasheet, and the device can be programmed to output a specific voltage within the range of 0.9V to 5.5V.
  • The MAX6301ESA+ has a thermal shutdown temperature of 150°C. If the device's junction temperature exceeds this value, it will shut down to prevent damage. It is recommended to ensure proper thermal management, such as using a heat sink or providing adequate airflow, to prevent thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6301ESA+ Overview

Use the download button to access the MAX6301ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX63, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
