MAX6325CSA+T - Analog Devices

Description: Voltage References 1ppm/ C, Low-Noise, +2.5V/+4.096V/+5V Voltage References

Download MAX6325CSA+T Model

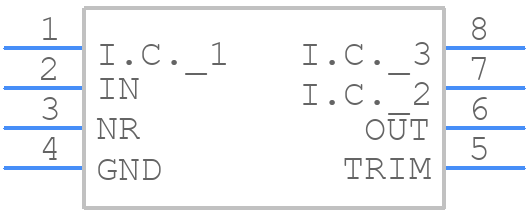

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6325CSA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+5
click to zoom
3D Models
MAX6325CSA+T - Analog Devices  - 3D model - Small Outline Packages - S8+5
click to zoom

MAX6325CSA+T Details

  • Manufacturer Part Number:

    MAX6325CSA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.501 V

  • Output Voltage-Min:

    2.499 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    1 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

MAX6325CSA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6325CSA+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, the MAX6325CSA+T requires a minimum output capacitance of 10uF, and the output capacitor should be placed close to the device. Additionally, the input capacitor should be placed close to the input pin, and the device should be decoupled from the power supply with a 10uF capacitor. A stable input voltage and a low-ESR output capacitor are also essential for stability.
  • The MAX6325CSA+T can handle input voltages up to 32V, but it is recommended to operate the device within the specified input voltage range of 4.5V to 28V to ensure optimal performance and reliability.
  • The MAX6325CSA+T is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent thermal shutdown. A thermal analysis should be performed to ensure the device operates within its thermal limits.
  • To troubleshoot issues with the MAX6325CSA+T, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and placed, and that the device is properly decoupled from the power supply. Check for noise and oscillations on the input and output lines, and ensure that the device is operating within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6325CSA+T Overview

Use the download button to access the MAX6325CSA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX63, or try a keyword search, such as Voltage References
