MAX6341CSA+ footprint, schematic symbol and 3D model by Analog Devices

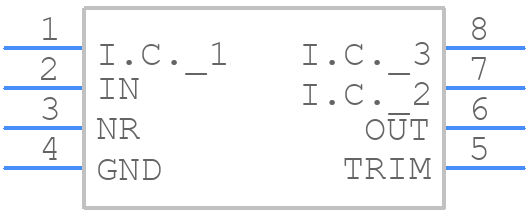

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX6341CSA+
Part Number MAX6341CSA+
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - S8+5
Released Date Jan 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX6341CSA+ Details

Manufacturer Part Number:
MAX6341CSA+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-SOIC_N-150_MIL
Package Description:
0.150 INCH, MS-012A, SOIC-8
Pin Count:
8
Manufacturer Package Code:
8-SOIC_N-150_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1997-04-12
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Output Voltage-Max:
4.097 V
Output Voltage-Min:
4.095 V
Output Voltage-Nom:
4.096 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
3.2 mA
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
8 V
Supply Voltage-Nom (Vsup):
10 V
Surface Mount:
YES
Temp Coef of Voltage-Max:
1 ppm/°C
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trim/Adjustable Output:
YES
Voltage Tolerance-Max:
0.024%
Width:
3.9 mm

MAX6341CSA+ Frequently Asked Questions (FAQs)

The recommended layout and placement for the MAX6341CSA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and heat sources.
To ensure stability, it's essential to follow the recommended capacitor values and types, and to keep the capacitors close to the device. Additionally, the input and output voltage rails should be well-bypassed, and the device should be operated within its recommended operating conditions. It's also recommended to add a small series resistor (e.g., 1Ω) between the output capacitor and the output pin to prevent oscillation.
The maximum output current capability of the MAX6341CSA+ is not explicitly stated in the datasheet, but it's typically limited by the internal power dissipation and the package thermal resistance. As a general guideline, the device can deliver up to 100mA of output current, but this may vary depending on the specific application and operating conditions.
The MAX6341CSA+ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to ensure proper thermal management to prevent overheating. Additionally, the device's output voltage and current capabilities may be reduced at high temperatures.
To troubleshoot issues with the MAX6341CSA+, start by verifying the input voltage, output voltage, and output current. Check for proper capacitor values and types, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check for oscillations or noise on the output, and verify that the device is not overheating. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.

Trust Checks

Community Provided

System Verified

Community Approved

MAX6341CSA+ Overview

Use the download button to access the MAX6341CSA+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX63, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
