MAX6369KA/V+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6369KA/V+T - MPU Supervisor, 2.5V-5.5V supply, Active-Low, Open-Drain reset, 300 ms delay, SOT-23-8

Download MAX6369KA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

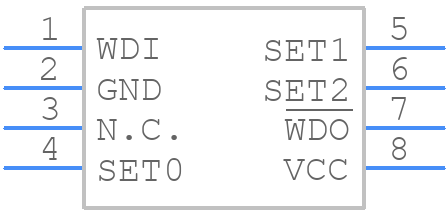

MAX6369KA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6369KA/V+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8SN+1
click to zoom
3D Models
MAX6369KA/V+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8SN+1
click to zoom

MAX6369KA/V+T Details

  • Manufacturer Part Number:

    MAX6369KA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    WATCHDOG TIMER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6369KA/V+T Frequently Asked Questions (FAQs)

  • The MAX6369KA/V+T is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the battery, use short traces, and avoid routing high-frequency signals near the device. Additionally, a solid ground plane and a decoupling capacitor (e.g., 10nF) between VCC and GND are recommended.
  • The resistor values for the RST and EN pins depend on the specific application and the desired reset and enable thresholds. As a general guideline, a 1kΩ to 10kΩ resistor can be used for the RST pin, and a 10kΩ to 100kΩ resistor can be used for the EN pin. However, it is recommended to consult the datasheet and application notes for more specific guidance.
  • The MAX6369KA/V+T has an operating temperature range of -40°C to +125°C. However, it is recommended to derate the device's performance at extreme temperatures, and to ensure that the device is operated within the specified temperature range to ensure reliability and accuracy.
  • Yes, the MAX6369KA/V+T can be used with a rechargeable battery. However, it is recommended to ensure that the battery's charging and discharging characteristics are compatible with the device's operating conditions. Additionally, the device's reset and enable thresholds should be set accordingly to accommodate the battery's voltage range.
  • To troubleshoot issues with the MAX6369KA/V+T, it is recommended to check the device's pin connections, ensure that the device is properly powered, and verify that the reset and enable pins are properly configured. Additionally, using an oscilloscope or logic analyzer to monitor the device's signals can help identify the root cause of the issue.
