MAX6372KA+T - Analog Devices

Description: Supervisory Circuits Pin-Selectable Watchdog Timers

Download MAX6372KA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

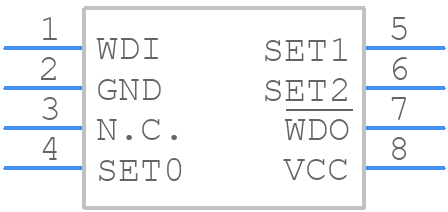

MAX6372KA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6372KA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8SN+1
click to zoom
3D Models
MAX6372KA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8SN+1
click to zoom

MAX6372KA+T Details

  • Manufacturer Part Number:

    MAX6372KA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    WATCHDOG TIMER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6372KA+T Frequently Asked Questions (FAQs)

  • The MAX6372KA+T is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the battery, use short traces, and avoid routing high-frequency signals near the device. Additionally, a solid ground plane and a decoupling capacitor (e.g., 10nF) between VCC and GND are recommended.
  • The reset pin (MR) should be tied to VCC through a pull-up resistor (e.g., 10kΩ) to ensure a clean reset during power-up. During power-down, the MR pin should be driven low to ensure a clean reset. It is also recommended to add a capacitor (e.g., 100nF) between MR and GND to filter out noise.
  • The recommended input voltage range for the MAX6372KA+T is 2.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
  • To ensure the accuracy of the voltage monitoring function, it is recommended to use a high-precision voltage reference (e.g., 1% tolerance) and to minimize the resistance of the voltage sense lines. Additionally, the device should be calibrated during manufacturing or at the system level to account for any variations in the voltage sense circuitry.
  • The maximum allowed voltage on the output pins (e.g., RST, PFI) during power-down or brownout conditions is VCC + 0.3V. Exceeding this voltage may damage the device.
