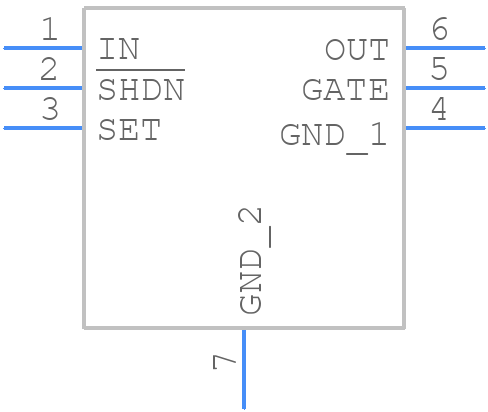

Symbol
MAX6398ATT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6398ATT+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
MAX6398ATT+T - Analog Devices - 3D model - Small Outline No-lead - T633+2
click to zoom

MAX6398ATT+T Details

  • Manufacturer Part Number:

    MAX6398ATT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC6,.11,37

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.11,37

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6398ATT+T Frequently Asked Questions (FAQs)

  • The MAX6398ATT+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to place the device away from high-current carrying traces and to use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The selection of input and output capacitors for the MAX6398ATT+T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The capacitor voltage rating should be at least 1.5 times the maximum input voltage. It is also important to consider the capacitor's temperature coefficient, ESR, and ripple current rating.
  • The MAX6398ATT+T can handle an input voltage up to 32V, but it is recommended to operate the device within the specified input voltage range of 4.5V to 28V to ensure optimal performance and reliability.
  • To ensure the MAX6398ATT+T is stable and does not oscillate, it is recommended to follow the stability compensation guidelines provided in the datasheet. This includes selecting the correct output capacitor value, using a low-ESR output capacitor, and adding a compensation capacitor between the COMP pin and the output pin. Additionally, it is important to ensure that the input voltage is within the specified range and that the device is operated within the recommended temperature range.
  • The typical startup time for the MAX6398ATT+T is around 10ms to 20ms, depending on the input voltage and output capacitor value. However, this time can vary depending on the specific application and operating conditions.
