MAX6581TG9A+T - Analog Devices

Description: Board Mount Temperature Sensors 1 C Accurate 8-Channel Temperature Sensor

Download MAX6581TG9A+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

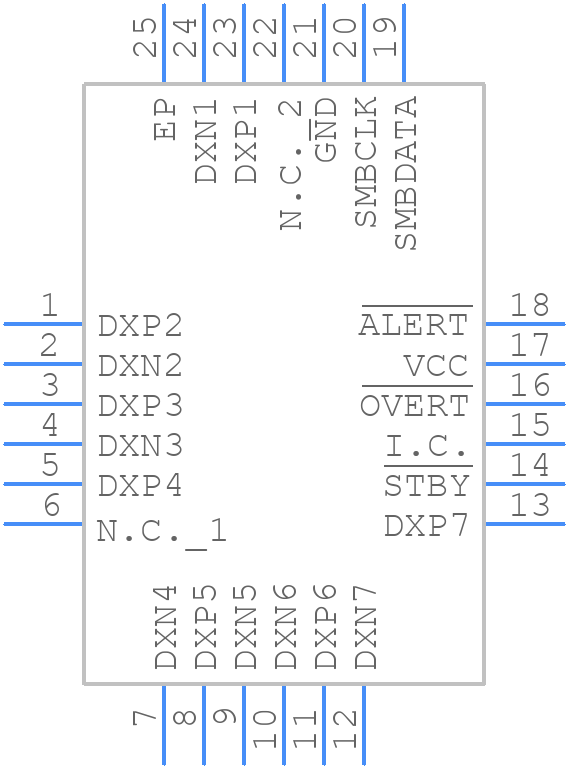

MAX6581TG9A+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6581TG9A+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX6581TG9A+T*
click to zoom
3D Models
MAX6581TG9A+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX6581TG9A+T*
click to zoom

MAX6581TG9A+T Details

  • Manufacturer Part Number:

    MAX6581TG9A+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2010-09-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.73 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    24

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    0.1 V

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6581TG9A+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6581TG9A+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor. It's also important to check the device's stability by analyzing the output impedance and phase margin using tools like SPICE simulations or impedance analyzers.
  • The MAX6581TG9A+T has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device, so it's essential to ensure the input voltage stays within the recommended range.
  • The MAX6581TG9A+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within a safe operating temperature range.
  • To troubleshoot issues with the MAX6581TG9A+T, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Use an oscilloscope to analyze the output voltage waveform and check for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines and consider seeking support from Analog Devices' technical support team if the issue persists.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6581TG9A+T Overview

Use the download button to access the MAX6581TG9A+T schematic symbol, PCB footprint, and 3D model.
