MAX6581TG9C+ - Analog Devices

Description: ±1°C Accurate 8-Channel Temperature Sensor

Download MAX6581TG9C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

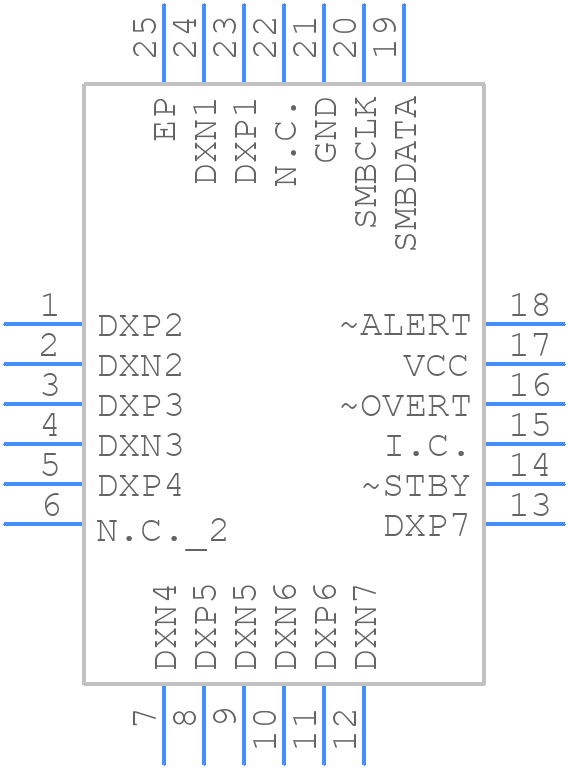

MAX6581TG9C+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6581TG9C+ - Analog Devices PCB footprint - Other - Other - QFN50P400X400X80-25N
click to zoom
3D Models
MAX6581TG9C+ - Analog Devices - 3D model - Other - QFN50P400X400X80-25N
click to zoom

MAX6581TG9C+ Details

  • Manufacturer Part Number:

    MAX6581TG9C+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2010-09-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.73 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    24

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    0.1 V

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER
