MAX6581TG9E+ - Analog Devices

Description: ±1°C Accurate 8-Channel Temperature Sensor

Download MAX6581TG9E+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

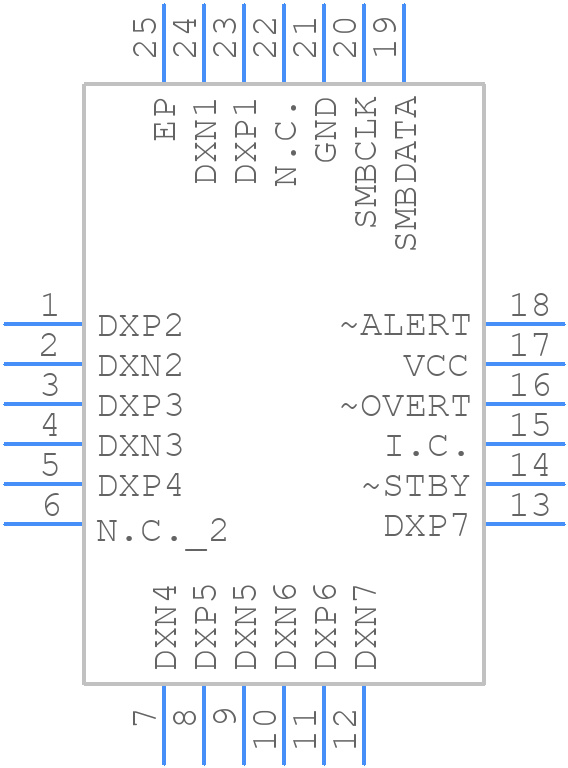

MAX6581TG9E+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6581TG9E+ - Analog Devices PCB footprint - Other - Other - QFN50P400X400X80-25N
click to zoom
3D Models
MAX6581TG9E+ - Analog Devices - 3D model - Other - QFN50P400X400X80-25N
click to zoom

MAX6581TG9E+ Details

  • Manufacturer Part Number:

    MAX6581TG9E+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2010-09-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.73 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    24

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Max:

    0.1 V

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6581TG9E+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6581TG9E+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded.
  • The maximum input voltage that the MAX6581TG9E+ can handle is 32V. Exceeding this voltage can damage the device. It's recommended to use input voltage protection circuitry, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The MAX6581TG9E+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures, and to ensure good thermal management, such as using a heat sink or a thermal pad.
  • To troubleshoot issues with the MAX6581TG9E+, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MAX6581TG9E+ Overview

Use the download button to access the MAX6581TG9E+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX65, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
