MAX6604AATA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6604AATA+T - Temperature Sensor IC, DDR Memory Mod, Digital, ± 1°C, -20 °C, 125 °C, TDFN, 8 Pins

Download MAX6604AATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

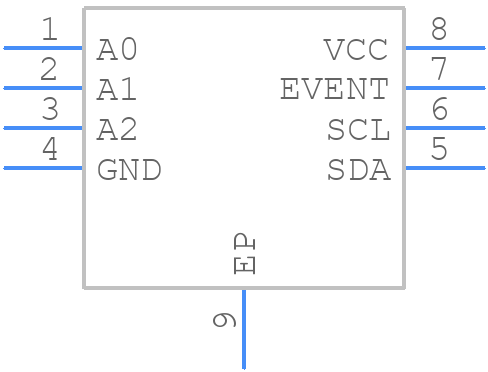

MAX6604AATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6604AATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T823+1_2020
click to zoom
3D Models
MAX6604AATA+T - Analog Devices - 3D model - Small Outline No-lead - T823+1_2020
click to zoom

MAX6604AATA+T Details

  • Manufacturer Part Number:

    MAX6604AATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2006-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6604AATA+T Frequently Asked Questions (FAQs)

  • The MAX6604AATA+T is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
  • To ensure proper biasing and configuration, refer to the datasheet's application circuits and follow the recommended component values and connections. Additionally, consider the specific requirements of your application, such as input voltage range, output voltage range, and desired accuracy, and adjust the component values accordingly.
  • The MAX6604AATA+T has a maximum junction temperature of 150°C. To ensure safe operation, follow the thermal management guidelines provided in the datasheet, including using a heat sink if necessary, keeping the device away from heat sources, and ensuring good airflow around the device.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section and follow the recommended steps, including checking the power supply, input and output connections, and component values. Additionally, use oscilloscope measurements to identify any signs of oscillation or instability, and adjust the component values or layout accordingly.
  • The MAX6604AATA+T has built-in ESD protection, but it is still important to follow proper handling and storage precautions to prevent damage. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6604AATA+T Overview

Use the download button to access the MAX6604AATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
