MAX664ESA+ - Analog Devices

Description: MAX664ESA+, Voltage Regulator, Adj./Fixed 0.04A, -15 to -1.3V, 0.45W, 8-Pin, SOIC

Download MAX664ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

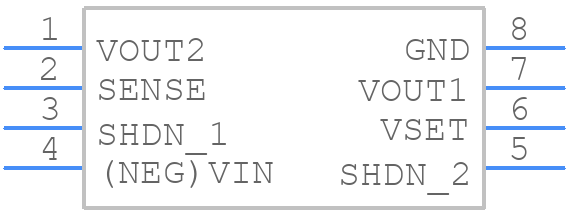

Symbol
MAX664ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX664ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
MAX664ESA+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

MAX664ESA+ Details

  • Manufacturer Part Number:

    MAX664ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Nom:

    2.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.35

  • Load Regulation-Max(%):

    1.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.04 A

  • Output Voltage1-Max:

    16 V

  • Output Voltage1-Min:

    1.3 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE NEGATIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX664ESA+ Frequently Asked Questions (FAQs)

  • The MAX664ESA+ is a sensitive device and requires careful layout and placement to ensure accurate temperature measurements. It is recommended to place the device close to the thermal source, use a solid ground plane, and keep the device away from high-current carrying traces and noise sources. Additionally, it is recommended to use a 4-layer PCB with a dedicated thermal layer to improve thermal conductivity.
  • The MAX664ESA+ does not require calibration for temperature measurements. The device has an internal calibration that is performed during manufacturing, and the temperature measurement accuracy is guaranteed over the operating temperature range. However, if the device is used in a specific application that requires high accuracy, it is recommended to perform a system-level calibration to account for any thermal gradients or other environmental factors that may affect the measurement accuracy.
  • The maximum cable length that can be used with the MAX664ESA+ depends on the specific application and the type of cable used. In general, it is recommended to keep the cable length as short as possible to minimize signal attenuation and noise pickup. However, the device can tolerate cable lengths of up to 10 meters (33 feet) with a maximum capacitance of 1000 pF. It is recommended to use a shielded cable and to follow proper cable termination and routing practices to minimize signal degradation.
  • Yes, the MAX664ESA+ can be used in a multi-drop configuration. The device has a 3-wire interface that allows multiple devices to be connected to a single bus. However, it is recommended to use a dedicated bus for each device to ensure accurate temperature measurements and to prevent bus contention. Additionally, it is recommended to use a bus buffer or repeater to improve signal integrity and to reduce the effects of bus loading.
  • The MAX664ESA+ has a power-on reset (POR) circuit that ensures the device is in a known state after power-up. When the device is powered on, the POR circuit holds the device in a reset state for a minimum of 10 ms to allow the internal voltage regulators to stabilize. After the POR timeout, the device begins to operate normally and starts to output temperature data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX664ESA+ Overview

Use the download button to access the MAX664ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
