MAX6650EUB+T - Analog Devices

Description: Motor/Motion/Ignition Controllers & Drivers Fan-Speed Regulators and Monitors with SMBus /I C-Compatible Interface

Download MAX6650EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

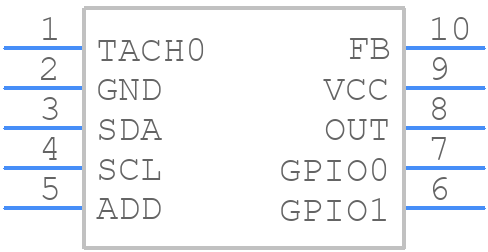

MAX6650EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6650EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_11
click to zoom
3D Models
MAX6650EUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2_11
click to zoom

MAX6650EUB+T Details

  • Manufacturer Part Number:

    MAX6650EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP10,.19,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6650EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6650EUB+T involves keeping the device away from heat sources, using a solid ground plane, and minimizing thermal gradients on the board. It's also recommended to use a 4-layer board with a dedicated thermal layer to improve thermal conductivity.
  • The MAX6650EUB+T does not require calibration, as it is a digital thermometer with an internal calibration. However, it's recommended to perform a system-level calibration to account for any thermal gradients or offsets in the system.
  • The maximum cable length for the 1-Wire interface of the MAX6650EUB+T is approximately 100 meters, but this can vary depending on the cable quality, noise levels, and system design. It's recommended to use a shielded cable and follow proper 1-Wire interface design guidelines to ensure reliable communication.
  • Yes, the MAX6650EUB+T can be used in a multi-drop configuration, where multiple devices are connected to the same 1-Wire bus. However, it's essential to ensure that each device has a unique address and that the bus is properly terminated to prevent signal reflections and errors.
  • The MAX6650EUB+T has built-in error detection and correction mechanisms, such as cyclic redundancy checks (CRCs) and parity bits. In case of errors or faults, the device can be reset, and the system can be designed to retry the communication or take alternative actions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6650EUB+T Overview

Use the download button to access the MAX6650EUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Motion Control Electronics

About Analog Devices
