MAX666ESA+ - Analog Devices

Description: Maxim MAX666ESA+, LDO Voltage Regulator, Adj./Fixed 40mA, 4.75 → 5.25 V 5%, 8-Pin SOIC

Download MAX666ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

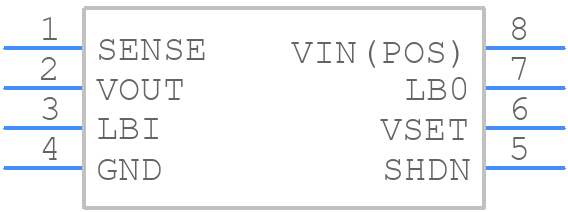

MAX666ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX666ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX666ESA+ - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX666ESA+ Details

  • Manufacturer Part Number:

    MAX666ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.9 V

  • Input Voltage Absolute-Max:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.2275%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.04 A

  • Output Voltage1-Max:

    16 V

  • Output Voltage1-Min:

    1.3 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.9 mm

MAX666ESA+ Frequently Asked Questions (FAQs)

  • The MAX666ESA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the battery, use short traces, and avoid routing high-frequency signals near the device. Additionally, a solid ground plane and a decoupling capacitor (e.g., 10nF) between VCC and GND are recommended.
  • The MAX666ESA+ does not require calibration for voltage monitoring. The device has an internal voltage reference and is calibrated at the factory. However, it is recommended to verify the accuracy of the voltage monitoring by comparing it with a known reference voltage source.
  • The maximum voltage that can be applied to the input pins of the MAX666ESA+ is 6V. Exceeding this voltage can damage the device. It is recommended to use voltage limiting resistors or diodes to protect the device from overvoltage conditions.
  • The MAX666ESA+ is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. It is recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified limits.
  • To troubleshoot issues with the MAX666ESA+, start by verifying the power supply voltage, checking for proper connections, and ensuring that the device is properly configured. Use a multimeter to measure the voltage at the input pins and the output pins. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
