MAX6683AUB+ - Analog Devices

Description: Maxim MAX6683AUB+ Temperature Sensor 8-Pin SOIC, -40 → +125 °C

Download MAX6683AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

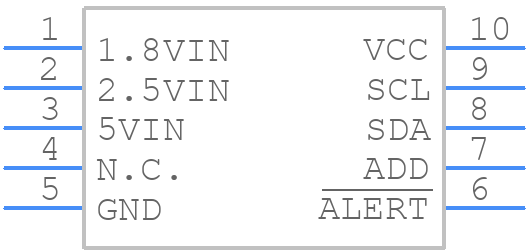

MAX6683AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6683AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX
click to zoom
3D Models
MAX6683AUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µMAX
click to zoom

MAX6683AUB+ Details

  • Manufacturer Part Number:

    MAX6683AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX6683AUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6683AUB+ involves keeping the device away from heat sources, using a solid ground plane, and minimizing thermal gradients on the board. It's also recommended to use a 4-layer board with a dedicated thermal layer to reduce thermal noise.
  • The MAX6683AUB+ does not require calibration, as it is a highly accurate temperature sensor with a built-in calibration. However, if you need to achieve even higher accuracy, you can perform a system-level calibration by measuring the temperature sensor's output at multiple known temperatures and creating a lookup table or polynomial equation to correct for any non-linearity.
  • The maximum cable length for the MAX6683AUB+ digital output depends on the specific application and the noise environment. As a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise and ensure reliable communication. If a longer cable is required, consider using a shielded cable and a signal repeater or buffer to maintain signal integrity.
  • Yes, the MAX6683AUB+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, consider using a vibration-dampening material or a shock-absorbing mount to reduce the impact of vibrations on the device.
  • To handle the MAX6683AUB+ digital output in a noisy environment, consider using a noise-filtering capacitor on the output lines, implementing a digital filter in your microcontroller or FPGA, or using a differential signaling scheme to reduce electromagnetic interference (EMI). Additionally, ensure that the digital output is properly terminated and that the receiving device has a high input impedance to minimize signal loading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6683AUB+ Overview

Use the download button to access the MAX6683AUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
