MAX6705ASKA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6705ASKA+T - Supervisor with Watchdog, Manual, Push-Pull, 2 Monitors, 1.2 V to 5.5 V, 200 ms delay, SOT-23-8

Download MAX6705ASKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

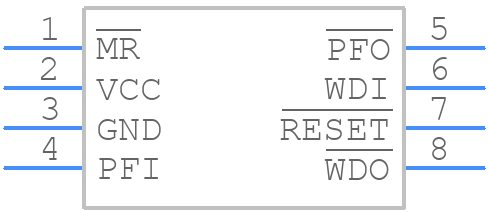

MAX6705ASKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6705ASKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+2
click to zoom
3D Models
MAX6705ASKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+2
click to zoom

MAX6705ASKA+T Details

  • Manufacturer Part Number:

    MAX6705ASKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:Y;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6705ASKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6705ASKA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX6705ASKA+T depends on the specific application and requirements. The datasheet provides recommended values for the resistors and capacitors, but these can be adjusted based on the specific use case. It's recommended to use high-quality, low-ESR capacitors and 1% tolerance resistors to ensure optimal performance.
  • The MAX6705ASKA+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • The MAX6705ASKA+T has a power-on reset (POR) circuit that ensures the device is properly powered up and initialized during startup. It's recommended to follow the power-up sequence outlined in the datasheet, which involves applying the input voltage to the device before enabling the output.
  • Common failure modes of the MAX6705ASKA+T include overvoltage, undervoltage, and overheating. To mitigate these, it's recommended to use overvoltage protection (OVP) and undervoltage protection (UVP) circuits, as well as thermal monitoring and shutdown mechanisms. Additionally, following proper PCB layout and thermal design practices can help prevent overheating.
