MAX6747KA16+T - Analog Devices

Description: Supervisory Circuits P Reset Circuits with Capacitor-Adjustable Reset/Watchdog Timeout Delay

Download MAX6747KA16+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

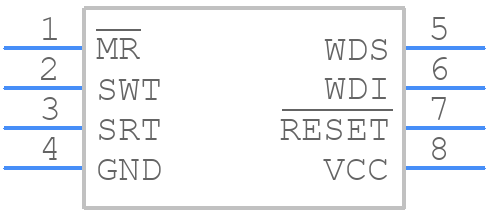

Symbol
MAX6747KA16+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6747KA16+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX6747KA16+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX6747KA16+T Details

  • Manufacturer Part Number:

    MAX6747KA16+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.575V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6747KA16+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6747KA16+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the MAX6747KA16+T is properly powered up and initialized, it's recommended to follow a power-up sequence that includes applying the input voltage (VIN) before the enable signal (EN). Additionally, the device should be powered up with a slow ramp-up time (typically 1ms to 10ms) to prevent excessive inrush current.
  • The maximum allowed input voltage ripple for the MAX6747KA16+T is typically 100mV peak-to-peak. Exceeding this limit may affect the device's performance and stability. It's recommended to use a high-quality input filter capacitor to reduce the input voltage ripple.
  • To troubleshoot issues with the MAX6747KA16+T, it's recommended to follow a systematic approach that includes checking the input voltage, output voltage, and enable signal. Additionally, verify that the device is properly powered up and initialized, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX6747KA16+T is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature applications, and consider using thermal management techniques such as heat sinks or thermal interfaces to ensure reliable operation.
