MAX6751KA29+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6751KA29+T - MPU SUPERVISOR, DUAL, 5.5V, SOT-23-8

Download MAX6751KA29+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

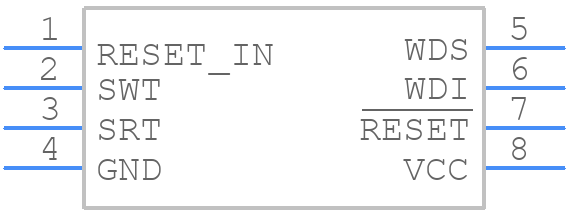

MAX6751KA29+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6751KA29+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 21-00078 (8L,SOT-23)
click to zoom
3D Models
MAX6751KA29+T - Analog Devices - 3D model - SOT23 (8-Pin) - 21-00078 (8L,SOT-23)
click to zoom

MAX6751KA29+T Details

  • Manufacturer Part Number:

    MAX6751KA29+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6751KA29+T Frequently Asked Questions (FAQs)

  • The MAX6751KA29+T is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To ensure stability, it is essential to follow the compensation guidelines provided in the datasheet. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them in the correct locations. Additionally, it is recommended to simulate the circuit using SPICE models to verify stability before building the prototype.
  • The maximum power dissipation of the MAX6751KA29+T is dependent on the operating conditions, including the input voltage, output current, and ambient temperature. The power dissipation can be calculated using the formula provided in the datasheet, which takes into account the device's thermal resistance and maximum junction temperature.
  • The MAX6751KA29+T is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It is essential to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, the device's thermal management should be considered to prevent overheating.
  • To troubleshoot issues with the MAX6751KA29+T, it is recommended to follow a systematic approach, including verifying the circuit design and layout, checking the component values and tolerances, and using oscilloscopes and other measurement tools to identify the root cause of the issue. Additionally, Analog Devices provides application notes and technical support resources to help troubleshoot and resolve issues.
