MAX6751KA31+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6751KA31+T - MPU Supervisor, 2 Monitors, 1V-5.5V supply, Active-Low, Open-Drain, 3.075V threshold, SOT-23-8

Download MAX6751KA31+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

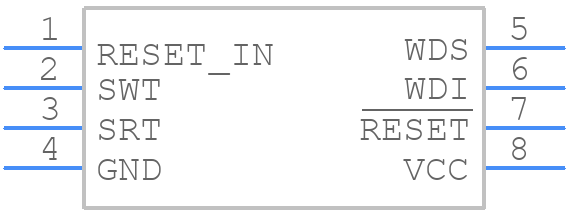

MAX6751KA31+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6751KA31+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX6751KA31+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX6751KA31+T Details

  • Manufacturer Part Number:

    MAX6751KA31+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6751KA31+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6751KA31+T involves keeping the input and output pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and parasitic inductance. It's also recommended to place the device near the power source and to use a decoupling capacitor between the input and ground pins.
  • To ensure stability, it's essential to follow the recommended layout and placement guidelines, use a sufficient decoupling capacitor, and ensure that the input and output capacitors are properly sized. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be within the specified range.
  • The maximum output current of the MAX6751KA31+T is 500mA. However, it's recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • The MAX6751KA31+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper heat sinking to prevent overheating.
  • To troubleshoot issues with the MAX6751KA31+T, start by verifying the input voltage, output voltage, and output current. Check for proper decoupling, correct component values, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check for noise, oscillations, or other anomalies on the input and output pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6751KA31+T Overview

Use the download button to access the MAX6751KA31+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX67, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
