MAX6753KA29+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6753KA29+T - MPU Supervisor, 2 Monitors, 1V-5.5V supply, Active-Low, Open-Drain, 2.925V threshold, SOT-23-8

Download MAX6753KA29+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

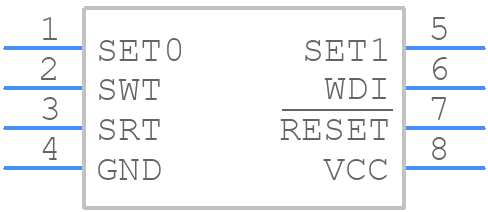

MAX6753KA29+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6753KA29+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX6753KA29+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX6753KA29+T Details

  • Manufacturer Part Number:

    MAX6753KA29+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6753KA29+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6753KA29+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a capacitor with a low equivalent series resistance (ESR) for the output capacitor, and avoid using capacitors with high ESL (equivalent series inductance). Also, ensure that the input and output capacitors are properly decoupled from the device.
  • The maximum input voltage that the MAX6753KA29+T can handle is 32V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 28V to ensure optimal performance and reliability.
  • The MAX6753KA29+T is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked, and the junction temperature is kept within the specified limits to prevent thermal shutdown or damage.
  • To troubleshoot issues with the MAX6753KA29+T, start by verifying the input voltage, output voltage, and current. Check the device's pin voltages and currents using an oscilloscope or a multimeter. Ensure that the input and output capacitors are properly connected and meet the recommended specifications. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
