MAX6753KA31+T - Analog Devices

Description: μP Reset Circuits with Capacitor-Adjustable Reset/Watchdog Timeout Delay

Download MAX6753KA31+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

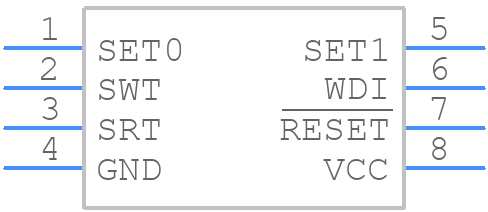

Symbol
MAX6753KA31+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6753KA31+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX6753KA31+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX6753KA31+T Details

  • Manufacturer Part Number:

    MAX6753KA31+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    LSSOP, TSSOP8,.1

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX6753KA31+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6753KA31+T involves keeping the input and output pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and parasitic inductance. Additionally, it is recommended to place the device near the power source and to use a decoupling capacitor between the input and ground pins.
  • To ensure the MAX6753KA31+T is stable and does not oscillate, it is recommended to follow the recommended layout and placement guidelines, use a sufficient decoupling capacitor, and ensure that the input and output capacitors are properly sized and placed. Additionally, the device should be operated within its recommended operating conditions and the input voltage should be well-regulated.
  • The maximum output current that the MAX6753KA31+T can deliver is 500mA. However, it is recommended to operate the device within its recommended operating conditions and to ensure that the output current does not exceed 80% of the maximum rating to ensure reliability and prevent overheating.
  • To protect the MAX6753KA31+T from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor to regulate the input voltage and ensure it is within the recommended operating range. Additionally, overvoltage protection (OVP) and undervoltage protection (UVP) circuits can be implemented to prevent damage to the device.
  • The thermal derating of the MAX6753KA31+T is 12mW/°C above 25°C. This means that the device's power dissipation should be reduced as the temperature increases to prevent overheating and ensure reliable operation. The thermal derating can affect the device's performance by reducing its output current capability and increasing its dropout voltage.
