MAX6795TPLD2/V+T - Analog Devices

Description: Supervisor Open Drain or Open Collector 1 Channel 20-TQFN (5x5)

Download MAX6795TPLD2/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

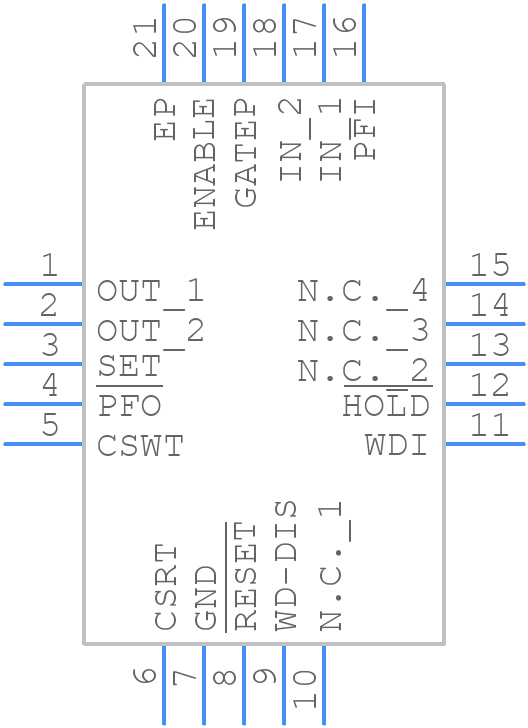

Symbol
MAX6795TPLD2/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6795TPLD2/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+4-1
click to zoom
3D Models
MAX6795TPLD2/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T2055+4-1
click to zoom

MAX6795TPLD2/V+T Details

  • Manufacturer Part Number:

    MAX6795TPLD2/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.22 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4.625V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX6795TPLD2/V+T Frequently Asked Questions (FAQs)

  • It's recommended to follow a star-grounding configuration, keeping the GND pin as close to the analog ground plane as possible. Place the device near the power source, and use a low-ESR capacitor (e.g., 10uF) between VCC and GND. Keep the input and output traces short and away from noise sources.
  • Apply power to VCC and GND simultaneously, ensuring a monotonic power-up sequence. The device will automatically initialize and start operating. If using an external reset, assert it low for at least 10ms to ensure a clean startup.
  • The maximum allowed input voltage is 5.5V. Exceeding this voltage may cause the device to malfunction or be damaged. The output voltage will be regulated to the specified value (e.g., 3.3V or 5V) as long as the input voltage is within the recommended operating range.
  • The device has built-in input voltage transient protection and noise filtering. However, it's still recommended to add external filtering (e.g., a 10uF capacitor) to further reduce noise and transient effects.
  • The device has a thermal derating of 12mW/°C above 25°C. This means that the maximum power dissipation decreases as the temperature increases. Ensure proper thermal design and heat sinking to maintain optimal performance and prevent overheating.
