MAX6897AALT+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6897AALT+T - MPU SUPERVISOR, 5.5V, UDFN-6

Download MAX6897AALT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

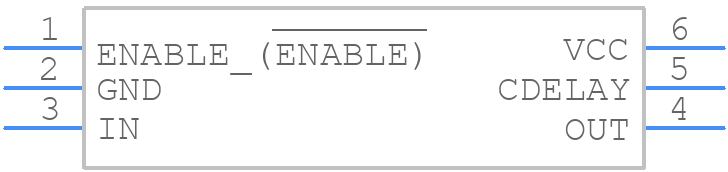

Symbol
MAX6897AALT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6897AALT+T - Analog Devices PCB footprint - Other - Other - L611+1
click to zoom
3D Models
MAX6897AALT+T - Analog Devices - 3D model - Other - L611+1
click to zoom

MAX6897AALT+T Details

  • Manufacturer Part Number:

    MAX6897AALT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-1.5X1X0.75

  • Package Description:

    VSON, SOLCC6,.04,20

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-1.5X1X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-05-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

MAX6897AALT+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6897AALT+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to minimize the length of the traces between the device and the battery.
  • To ensure accurate voltage monitoring, it's essential to use a high-precision voltage reference, such as the internal reference of the MAX6897AALT+T. Additionally, the device should be calibrated during manufacturing, and the calibration data should be stored in the device's EEPROM. It's also important to consider the temperature coefficient of the voltage reference and to use a low-noise, low-impedance connection to the battery.
  • The MAX6897AALT+T has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • The MAX6897AALT+T can be interfaced with a microcontroller using a standard I2C or SPI interface. The device has a 7-bit or 10-bit address, and the interface can be configured using the device's control registers. The microcontroller can read the device's registers to obtain voltage, current, and temperature data, and can also write to the device's registers to configure its operation.
  • The typical current consumption of the MAX6897AALT+T is around 1.2mA, making it suitable for use in battery-powered systems where power consumption is a concern. However, the current consumption can vary depending on the device's configuration and operating mode.
