MAX6898AALT+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6898AALT+T - Supervisor with Sequencing, Active-Low, Open-Drain, 1.5 V to 5.5 V supply, UDFN-6

Download MAX6898AALT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

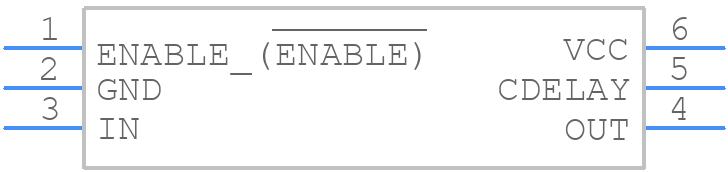

Symbol
MAX6898AALT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6898AALT+T - Analog Devices PCB footprint - Other - Other - L611+1
click to zoom
3D Models
MAX6898AALT+T - Analog Devices - 3D model - Other - L611+1
click to zoom

MAX6898AALT+T Details

  • Manufacturer Part Number:

    MAX6898AALT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-1.5X1X0.75

  • Package Description:

    VSON, SOLCC6,.04,20

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-1.5X1X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-05-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

MAX6898AALT+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX6898AALT+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated analog layer is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane.
  • To ensure accurate battery monitoring with the MAX6898AALT+T, it is essential to use high-precision external resistors for the voltage divider, keep the sense lines as short as possible, and minimize noise on the sense lines. Additionally, the device's internal voltage reference should be bypassed with a capacitor to reduce noise.
  • The MAX6898AALT+T has an operating temperature range of -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX6898AALT+T can be configured for different battery chemistries by adjusting the voltage threshold settings and the charge/discharge current limits. The device's internal registers can be programmed to accommodate different battery chemistries, such as lithium-ion, lead-acid, or nickel-metal hydride.
  • The typical current consumption of the MAX6898AALT+T is around 120μA in active mode and 10μA in shutdown mode. However, the current consumption may vary depending on the device's configuration, operating frequency, and external circuitry.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6898AALT+T Overview

Use the download button to access the MAX6898AALT+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX68, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
