MAX690MJA/883B - Analog Devices

Description: IC SUPERVISOR 1 CHANNEL 8CERDIP

Download MAX690MJA/883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

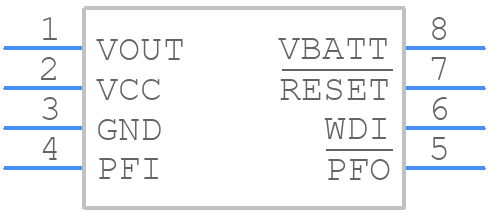

Symbol
MAX690MJA/883B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX690MJA/883B - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - J8-2
click to zoom
3D Models
MAX690MJA/883B - Analog Devices - 3D model - Dual-In-Line Packages - J8-2
click to zoom

MAX690MJA/883B Details

  • Manufacturer Part Number:

    MAX690MJA/883B

  • Brand Name:

    Analog Devices Inc

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-CERDIP-300_MIL

  • Package Description:

    CERDIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-CERDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-GDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    7.62 mm

MAX690MJA/883B Frequently Asked Questions (FAQs)

  • The MAX690MJA/883B is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX690MJA/883B is properly biased and configured for your specific application, it is recommended to follow the application notes and design guidelines provided in the datasheet. This includes selecting the appropriate input and output voltage ranges, setting the correct bias voltage, and configuring the device for the desired frequency range. Additionally, it is recommended to consult with Analog Devices' application engineers or technical support team for specific guidance on your application.
  • The MAX690MJA/883B has a maximum junction temperature of 150°C, and it is recommended to ensure that the device operates within its recommended temperature range to prevent thermal shutdown or damage. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, it is recommended to monitor the device's temperature using a thermocouple or thermal sensor and to implement thermal protection mechanisms in the system design.
  • To troubleshoot issues with the MAX690MJA/883B, it is recommended to follow a systematic approach, including checking the device's power supply, input and output signals, and PCB layout. It is also recommended to use oscilloscopes and spectrum analyzers to measure the device's output and identify any signs of oscillation or instability. Additionally, it is recommended to consult the datasheet and application notes, and to contact Analog Devices' technical support team for guidance and support.
  • Yes, the MAX690MJA/883B is a high-frequency device that can be susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues. To ensure compliance with regulatory requirements, it is recommended to follow good design practices, including using shielding, filtering, and grounding techniques to minimize EMI emissions. Additionally, it is recommended to perform EMI/EMC testing and certification to ensure compliance with relevant standards and regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX690MJA/883B Overview

Use the download button to access the MAX690MJA/883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Power Management Circuits
