MAX691ACSE+ - Analog Devices

Description: MAX691ACSE+, Processor Supervisor 0 → 5.5 V Active High, Active Low, Open Drain, 16-Pin SOIC

Download MAX691ACSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

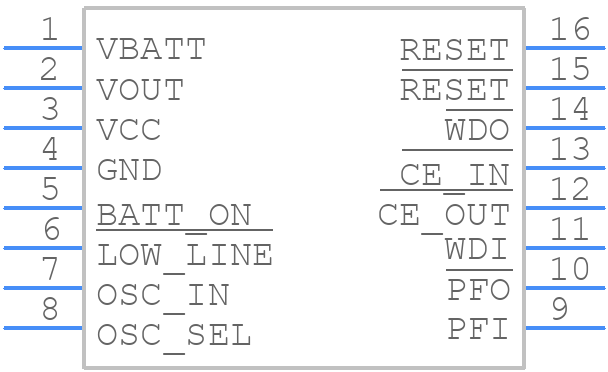

MAX691ACSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX691ACSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-SOIC (0.154", 3.90mm Width)
click to zoom
3D Models
MAX691ACSE+ - Analog Devices - 3D model - Small Outline Packages - 16-SOIC (0.154", 3.90mm Width)
click to zoom

MAX691ACSE+ Details

  • Manufacturer Part Number:

    MAX691ACSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX691ACSE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX691ACSE+ involves separating the analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and away from each other. Additionally, it's recommended to use a low-ESR capacitor for the input bypass capacitor and to place it close to the device.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed.
  • The maximum allowed input voltage for the MAX691ACSE+ is 36V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 30V for optimal performance and reliability.
  • The MAX691ACSE+ is rated for operation up to 125°C, but it's recommended to derate the device's performance and reliability at high temperatures. It's also important to ensure proper thermal management and heat dissipation to prevent overheating.
  • To troubleshoot issues with the MAX691ACSE+, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered up and initialized, and check for any signs of overheating or electrical overstress. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
