MAX691ACSE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX691ACSE+T - MPU Supervisor, 0V-5.5V supply, Active-High/Low, Push-Pull, 0.2s delay/4.65V threshold, NSOIC-16

Download MAX691ACSE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

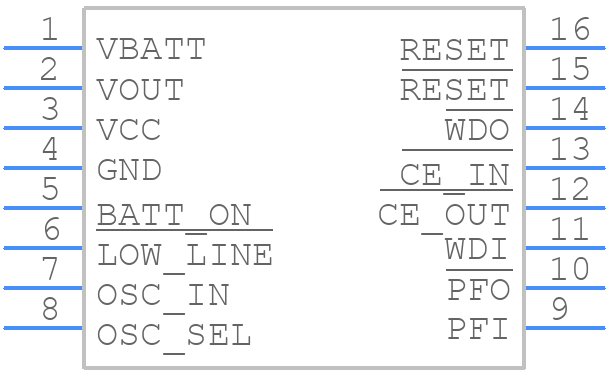

MAX691ACSE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX691ACSE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16+3
click to zoom
3D Models
MAX691ACSE+T - Analog Devices - 3D model - Small Outline Packages - S16+3
click to zoom

MAX691ACSE+T Details

  • Manufacturer Part Number:

    MAX691ACSE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX691ACSE+T Frequently Asked Questions (FAQs)

  • The MAX691ACSE+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and radiation.
  • To ensure the MAX691ACSE+T is properly powered and decoupled, it is recommended to use a high-quality power supply with low noise and ripple. A 0.1uF ceramic capacitor should be placed between the VCC pin and the GND pin, and a 10uF tantalum capacitor should be placed between the VCC pin and the GND pin. Additionally, it is recommended to use a ferrite bead or a pi-filter to filter out high-frequency noise on the power supply lines.
  • The MAX691ACSE+T has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX691ACSE+T, it is recommended to follow a systematic approach. First, verify that the device is properly powered and decoupled. Next, check the input and output signals using an oscilloscope to ensure they are within the specified ranges. Then, check the layout and placement of the device to ensure it is following the recommended guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX691ACSE+T is a high-reliability device, but it is not specifically designed for safety-critical applications. However, it can be used in high-reliability applications with proper design and testing. It is recommended to consult with Analog Devices Inc. and follow their guidelines for using the device in high-reliability applications.
