MAX691CPE+ - Analog Devices

Description: MAX691CPE+, Processor Supervisor 4.65 V Active High, Active Low, Push-Pull, 16-Pin PDIP N

Download MAX691CPE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

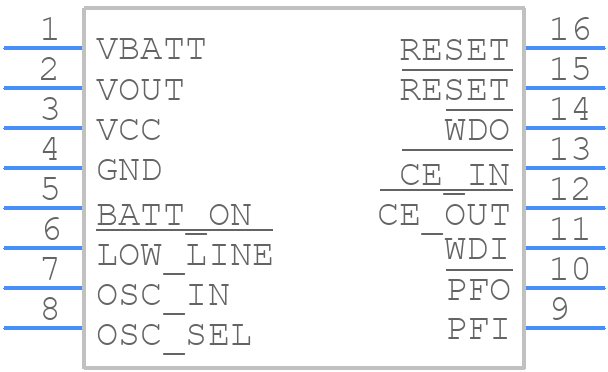

MAX691CPE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

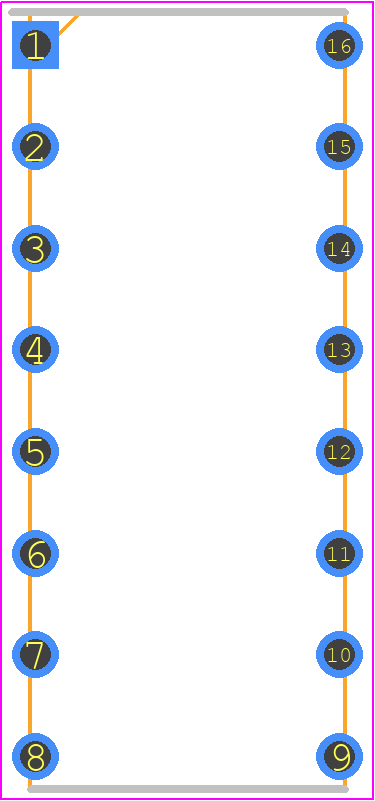

MAX691CPE+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16 PDIP
click to zoom
3D Models
MAX691CPE+ - Analog Devices - 3D model - Dual-In-Line Packages - 16 PDIP
click to zoom

MAX691CPE+ Details

  • Manufacturer Part Number:

    MAX691CPE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX691CPE+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX691CPE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to place the bypass capacitors as close as possible to the IC's power pins.
  • The value of the bypass capacitors (CBYP and CREG) depends on the specific application and the frequency range of interest. A good starting point is to use a 10uF capacitor for CBYP and a 1uF capacitor for CREG. However, it's recommended to consult the application notes and evaluate the performance of the device with different capacitor values to determine the optimal values for your specific use case.
  • The MAX691CPE+ has an operating temperature range of -40°C to +125°C. The device's performance may degrade at higher temperatures, with a decrease in accuracy and an increase in power consumption. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance and reliability.
  • To ensure proper power-up and initialization, it's recommended to follow a controlled power-up sequence, where the power supply voltage (VCC) is ramped up slowly (typically 1ms to 10ms) to the recommended operating voltage. Additionally, the EN pin should be tied to a logic high level during power-up to enable the device.
  • Common failure modes of the MAX691CPE+ include overvoltage, undervoltage, and overheating. To mitigate these failure modes, it's essential to ensure that the device is operated within the recommended voltage and temperature ranges, and that proper thermal management is implemented. Additionally, it's recommended to use protective circuits, such as voltage regulators and overvoltage protection devices, to prevent damage from voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX691CPE+ Overview

Use the download button to access the MAX691CPE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
