MAX6920AWP+ - Analog Devices

Description: VFD Drivers 12-Output, 76V, Serial-Interfaced VFD Tube Driver

Download MAX6920AWP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

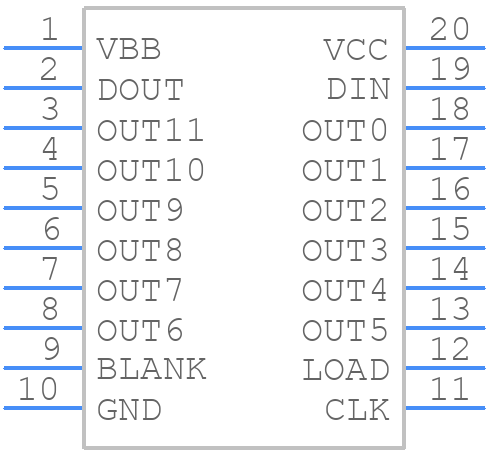

MAX6920AWP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6920AWP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W20-2
click to zoom
3D Models
MAX6920AWP+ - Analog Devices - 3D model - Small Outline Packages - W20-2
click to zoom

MAX6920AWP+ Details

  • Manufacturer Part Number:

    MAX6920AWP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, MS-013AC, SO-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VACUUM FLUORESCENT DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    76 V

  • Supply Voltage1-Min:

    8 V

  • Supply Voltage1-Nom:

    60 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • fmax-Min:

    5 MHz

MAX6920AWP+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6920AWP+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the MAX6920AWP+ is properly powered up and initialized, it's essential to follow the power-up sequence outlined in the datasheet. This involves applying the power supply voltage (VCC) before the input voltage (VIN), and ensuring that the input voltage is within the specified range. Additionally, the device should be initialized by setting the EN pin high and waiting for the internal voltage regulator to stabilize.
  • The MAX6920AWP+ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to keep the device within the specified operating temperature range (-40°C to 125°C). Thermal considerations include providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. The thermal resistance of the package (θJA) is 30°C/W, and the maximum power dissipation is 1.4W.
  • To troubleshoot issues with the MAX6920AWP+, start by verifying the power supply voltage and input voltage are within the specified ranges. Check the EN pin to ensure it's properly set high. Use an oscilloscope to verify the output voltage and frequency. If issues persist, consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices Inc. support for further assistance.
  • Yes, the MAX6920AWP+ is a high-frequency device and requires careful attention to EMI/EMC considerations. This includes using a shielded enclosure, keeping the device away from radiating sources, and using EMI filters on the input and output lines. Additionally, follow the PCB layout guidelines provided in the datasheet and application notes to minimize radiation and susceptibility.
