MAX6955AAX+ - Analog Devices

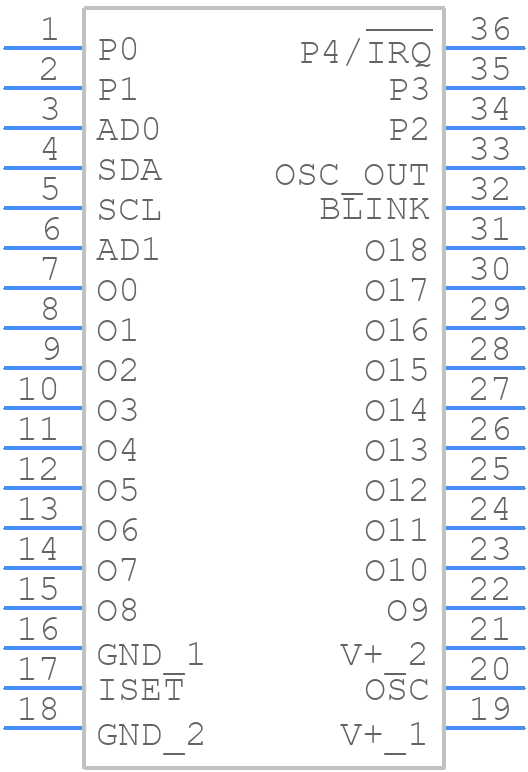

MAX6955AAX+ Details

• Manufacturer Part Number:

  MAX6955AAX+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  36-SSOP_W-7.62_MM

• Package Description:

  0.80 MM PITCH, SSOP-36

• Pin Count:

  36

• Manufacturer Package Code:

  36-SSOP_W-7.62_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2002-08-20

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  DRIVES UP TO 8 DIG 14-SEG, 8 DIG 16-SEG, 128 DISCRETE LEDS, OR A COMBINATION OF DIGIT TYPES

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  15.415 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  YES

• Number of Digits/Characters:

  16-DIGIT

• Number of Functions:

  1

• Number of Segments:

  7

• Number of Terminals:

  36

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP36,.4,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.64 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.495 mm

• fmax-Min:

  8 MHz
