MAX6956AAX+ - Analog Devices

Description: MAX6956AAX+, LED Display Driver 28-Segments, 2.7 → 5.5 V, 36-Pin SSOP

Download MAX6956AAX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

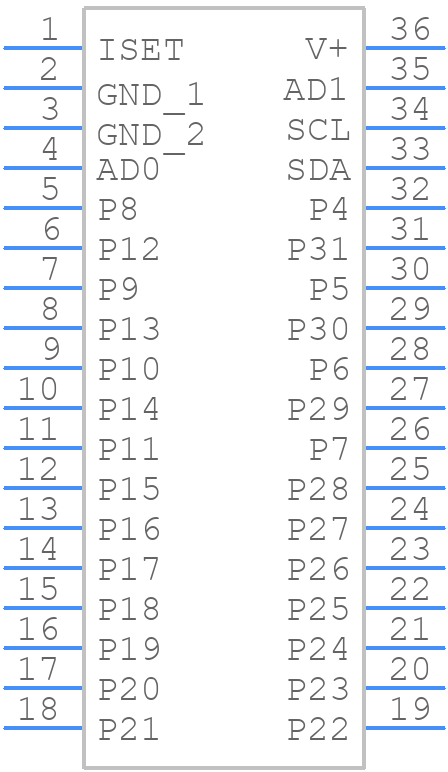

Symbol
MAX6956AAX+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6956AAX+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 36 SSOP
click to zoom
3D Models
MAX6956AAX+ - Analog Devices - 3D model - Small Outline Packages - MAX 36 SSOP
click to zoom

MAX6956AAX+ Details

  • Manufacturer Part Number:

    MAX6956AAX+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    COMMON-ANODE

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Digits/Characters:

    7-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX6956AAX+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6956AAX+ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve signal integrity.
  • To ensure reliable operation of the MAX6956AAX+ in high-temperature environments, it's recommended to follow proper thermal design and layout practices, such as using a heat sink, thermal vias, and thermal pads. Additionally, the device should be operated within its specified temperature range, and the power dissipation should be kept within the recommended limits.
  • Not using the recommended bypass capacitors on the MAX6956AAX+ can lead to reduced noise immunity, increased power supply noise, and decreased overall system reliability. The bypass capacitors help to filter out high-frequency noise and ensure stable operation of the device.
  • While the MAX6956AAX+ is specified to operate with a 3.3V or 5V supply, it's possible to use it with a different voltage supply, but this requires careful evaluation of the device's performance and power consumption. The device's operating voltage range is 2.7V to 5.5V, but the recommended operating voltage range is 3.3V or 5V. Using a different voltage supply may affect the device's performance, power consumption, and reliability.
  • To troubleshoot issues with the MAX6956AAX+, start by verifying the power supply voltage, checking for proper connections and soldering, and ensuring that the device is operated within its specified temperature range. Use oscilloscopes and logic analyzers to debug the device's signals and verify its operation. Consult the datasheet and application notes for troubleshooting guidelines and tips.
