MAX6959BAEE+ - Analog Devices

Description: LED Display Drivers 2-Wire Interfaced, 3V to 5.5V, 4-Digit, 9-Segment LED Display Drivers with Keyscan

Download MAX6959BAEE+ Model

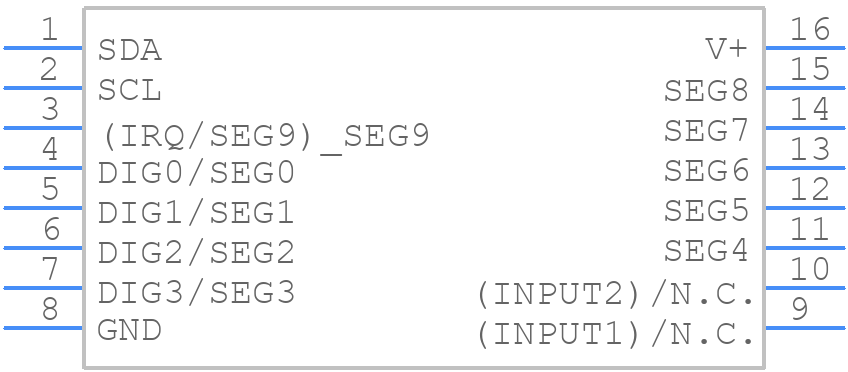

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX6959BAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16-1-1
click to zoom
3D Models
MAX6959BAEE+ - Analog Devices  - 3D model - Small Outline Packages - E16-1-1
click to zoom

MAX6959BAEE+ Details

  • Manufacturer Part Number:

    MAX6959BAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, EXPOSED PAD, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    COMMON-CATHODE

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Digits/Characters:

    4-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    9

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX6959BAEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6959BAEE+ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX6959BAEE+ in high-temperature environments, it's recommended to follow proper thermal design and layout practices, such as using a heat sink, providing adequate airflow, and selecting components with high temperature ratings. Additionally, the device should be operated within its specified temperature range and derated accordingly.
  • When using the MAX6959BAEE+ in a system with multiple power domains, it's essential to ensure that the device is powered from a single power domain and that the power domains are properly isolated to prevent noise and voltage fluctuations from affecting the device's operation. Additionally, the device's power-on reset (POR) and brown-out reset (BOR) features should be considered to ensure proper system startup and operation.
  • To troubleshoot issues with the MAX6959BAEE+, it's recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Next, verify the device's power supply, clock, and input signals. Use oscilloscopes and logic analyzers to capture waveforms and debug the system. Finally, consult with Analog Devices' technical support and application engineers for further assistance.
  • When using the MAX6959BAEE+ in a system with high-speed signals, it's essential to consider the device's signal integrity, noise tolerance, and electromagnetic interference (EMI). Use proper signal termination, routing, and shielding techniques to minimize signal reflections, crosstalk, and EMI. Additionally, ensure that the device's clock and data signals are properly synchronized and that the system's power supply is clean and stable.
