MAX695CPE+ - Analog Devices

Description: MAX695CPE+, Processor Supervisor 4.65 V Active High, Active Low, Push-Pull, 16-Pin PDIP N

Download MAX695CPE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

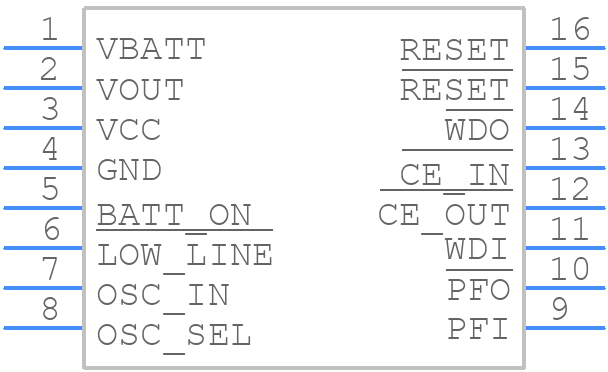

MAX695CPE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX695CPE+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16
click to zoom
3D Models
MAX695CPE+ - Analog Devices - 3D model - Dual-In-Line Packages - DIP16
click to zoom

MAX695CPE+ Details

  • Manufacturer Part Number:

    MAX695CPE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX695CPE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX695CPE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the power supply decoupling capacitors close to the device.
  • To ensure reliable operation of the MAX695CPE+ in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, such as using a heat sink, minimizing thermal resistance, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range.
  • When selecting external capacitors for the MAX695CPE+, consider the capacitor's equivalent series resistance (ESR), voltage rating, and temperature coefficient. The capacitor's ESR should be low to minimize power loss, and the voltage rating should be sufficient to handle the maximum voltage across the capacitor. The temperature coefficient should also be suitable for the operating temperature range.
  • To troubleshoot issues with the MAX695CPE+ not turning on or not functioning properly, check the power supply voltage, ensure that the input voltage is within the specified range, and verify that the enable pin is properly configured. Also, check for any short circuits or incorrect connections, and ensure that the device is properly soldered and mounted.
  • Not using the recommended bypass capacitors for the MAX695CPE+ can lead to instability, noise, and reduced performance. The bypass capacitors help to filter out noise and ripple on the power supply lines, ensuring that the device operates reliably and efficiently.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX695CPE+ Overview

Use the download button to access the MAX695CPE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
