MAX695CWE+ - Analog Devices

Description: MAX695CWE+, Processor Supervisor 4.65 V Active High, Active Low, Push-Pull, 16-Pin SOIC W

Download MAX695CWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

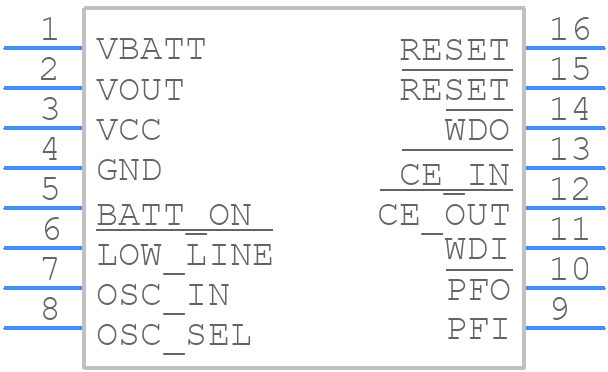

Symbol
MAX695CWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX695CWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - DS1210S 16-pin SOIC (300-mil)
click to zoom
3D Models
MAX695CWE+ - Analog Devices - 3D model - Small Outline Packages - DS1210S 16-pin SOIC (300-mil)
click to zoom

MAX695CWE+ Details

  • Manufacturer Part Number:

    MAX695CWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    LEAD FREE, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX695CWE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX695CWE+ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX695CWE+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • When selecting external components for the MAX695CWE+, key considerations include the type and value of resistors, capacitors, and inductors, as well as their tolerance, temperature coefficient, and power rating. It's also important to ensure that the components are compatible with the device's operating frequency and voltage range.
  • To troubleshoot common issues with the MAX695CWE+, it's essential to follow a systematic approach, starting with a review of the device's datasheet and application notes. Next, verify the device's power supply, clock signal, and communication interface. Use oscilloscopes and logic analyzers to debug the issue, and consult with Analog Devices' technical support team if necessary.
  • When using the MAX695CWE+ in a system with multiple power domains, it's essential to ensure that the device is properly powered and referenced to the correct power domain. This may require the use of level translators, voltage regulators, or other power management components to ensure reliable operation and prevent damage to the device.
