- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX6969AUG+
- Part Number MAX6969AUG+
- Manufacturer Analog Devices
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - U24+1
- Released Date Nov 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX6969AUG+ Details
-
Manufacturer Part Number:
MAX6969AUG+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
24-TSSOP_4.4-4.4_MM
-
Package Description:
TSSOP-24
-
Pin Count:
24
-
Manufacturer Package Code:
24-TSSOP_4.4-4.4_MM
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2005-06-09
MAX6969AUG+ Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the MAX6969AUG+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
-
To ensure the MAX6969AUG+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet. This typically involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the input voltage is within the recommended range, and the device is properly decoupled. Additionally, it's essential to wait for the internal voltage regulator to settle before applying any input signals.
-
The MAX6969AUG+ can sink or source up to 100mA of current per output pin. However, it's essential to ensure that the total current drawn from the device does not exceed the maximum recommended current, which is typically specified in the datasheet. Exceeding the maximum current can lead to device overheating, reduced reliability, and even damage.
-
To troubleshoot issues with the MAX6969AUG+, start by verifying that the device is properly powered up and initialized. Check the input and output voltages, and ensure that they are within the recommended ranges. Use an oscilloscope to verify the signal integrity and check for any noise or distortion. Also, review the PCB layout and routing to ensure that they meet the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.
-
The MAX6969AUG+ is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation. This typically involves reducing the maximum current and voltage ratings, and ensuring that the device is properly heat-sinked. Consult the datasheet and application notes for more information on high-temperature operation.
Trust Checks
Community Provided
System Verified
Community Approved
MAX6969AUG+ Overview

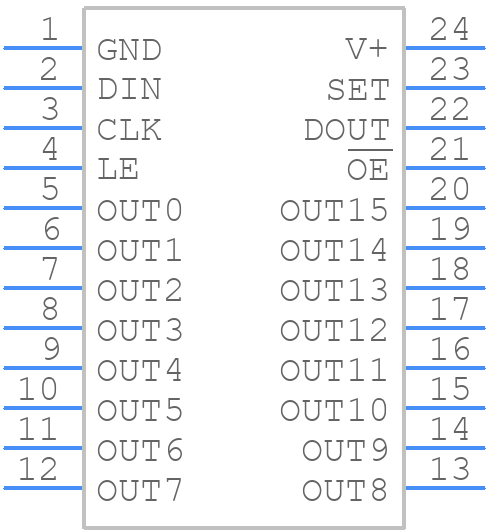

Use the download button to access the MAX6969AUG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69,
or try a keyword search, such as Display Drivers
