MAX700ESA+ - Analog Devices

Description: MAX700ESA+, Voltage Supervisor 4.5 → 4.75 V Active High, Active Low, Push-Pull, reset 8-Pin SOIC

Download MAX700ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

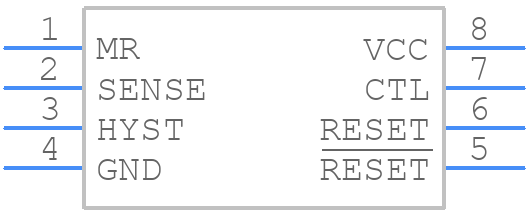

MAX700ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX700ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
MAX700ESA+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

MAX700ESA+ Details

  • Manufacturer Part Number:

    MAX700ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1990-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX700ESA+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX700ESA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes to ensure optimal performance.
  • To optimize the power-up sequence for the MAX700ESA+, it's recommended to power up the device in the following order: VCC, VDD, and then the input voltage. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device. Additionally, it's essential to ensure that the input voltage is stable and within the recommended range before applying power to the device.
  • The maximum operating temperature range for the MAX700ESA+ is -40°C to +125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the recommended operating temperature range is -20°C to +85°C for optimal performance.
  • To handle ESD protection for the MAX700ESA+, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Additionally, it's essential to follow proper handling and storage procedures to prevent ESD damage to the device. The MAX700ESA+ has built-in ESD protection, but additional protection may be required depending on the application and environment.
  • The recommended input voltage range for the MAX700ESA+ is 2.7V to 5.5V. However, the device can operate with input voltages as low as 2.5V, but with reduced performance and accuracy. It's essential to ensure that the input voltage is within the recommended range to ensure optimal performance and accuracy.
