MAX7032ATJ+ - Analog Devices

Description: Low-Cost, Crystal-Based, Programmable, ASK/FSK Transceiver with Fractional-N PLL, 32 TQFN-EP

Download MAX7032ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

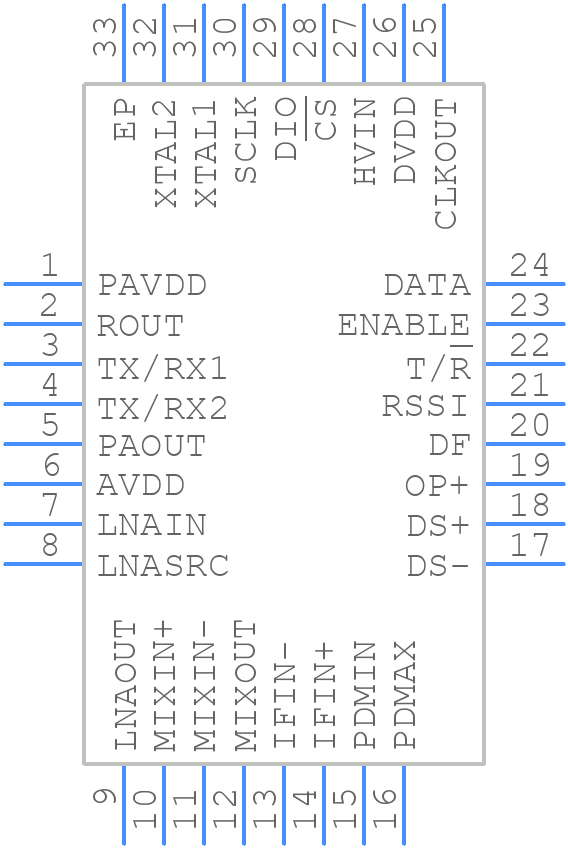

Symbol
MAX7032ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7032ATJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+3_2
click to zoom
3D Models
MAX7032ATJ+ - Analog Devices - 3D model - Quad Flat No-Lead - T3255+3_2
click to zoom

MAX7032ATJ+ Details

  • Manufacturer Part Number:

    MAX7032ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.0204 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX7032ATJ+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX7032ATJ+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize the length of the power traces.
  • To ensure the MAX7032ATJ+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet. Apply power to the device in the following order: VCC, then VDD, and finally the input signals. Also, ensure that the power supplies are stable and within the recommended operating range before applying input signals.
  • The maximum allowed capacitance on the output pins of the MAX7032ATJ+ is 100pF. Exceeding this value may affect the device's performance and stability. It's recommended to keep the output capacitance as low as possible to ensure proper operation.
  • The MAX7032ATJ+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's operating conditions and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the MAX7032ATJ+, start by verifying the power supply and input signals. Check for proper power-up sequencing, stable power supplies, and correct input signal levels. Use an oscilloscope to monitor the output signals and look for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7032ATJ+ Overview

Use the download button to access the MAX7032ATJ+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX70, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
