MAX7042ATJ+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7042ATJ+ - IF RECEIVER, 300MHZ-450MHZ, TQFN-28

Download MAX7042ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

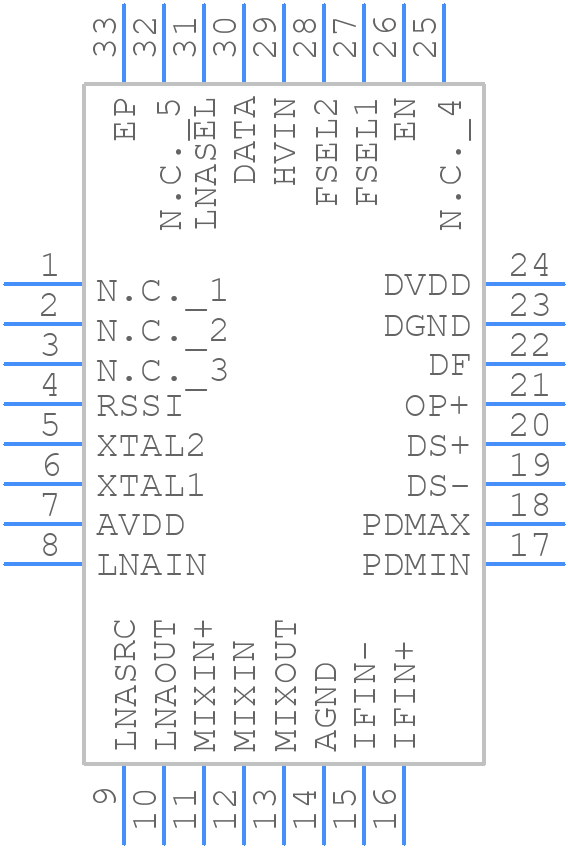

MAX7042ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7042ATJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NS602408
click to zoom
3D Models
MAX7042ATJ+ - Analog Devices - 3D model - Quad Flat No-Lead - NS602408
click to zoom

MAX7042ATJ+ Details

  • Manufacturer Part Number:

    MAX7042ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WHHD-2, TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-06-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.0092 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX7042ATJ+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX7042ATJ+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure proper power-up and power-down of the MAX7042ATJ+, it is recommended to follow a controlled power-up sequence, where the input voltage (VIN) is applied before the enable pin (EN) is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed. This helps prevent unwanted voltage transients and ensures proper device operation.
  • The maximum allowed voltage on the EN pin of the MAX7042ATJ+ is 6V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage limiter or a voltage divider to ensure the EN pin voltage does not exceed 6V.
  • During power-up, the WDT should be reset by asserting the WDT reset pin (WDTRST) low for at least 100ns. During power-down, the WDT should be disabled by asserting the WDT disable pin (WDTDIS) high. This helps prevent unwanted resets and ensures proper device operation.
  • The recommended operating temperature range for the MAX7042ATJ+ is -40°C to +125°C. Operating the device outside this range can affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7042ATJ+ Overview

Use the download button to access the MAX7042ATJ+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX70, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
