MAX704ESA+ footprint, schematic symbol and 3D model by Analog Devices

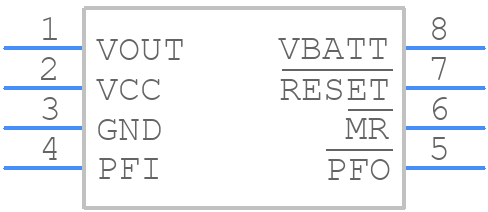

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX704ESA+
Part Number MAX704ESA+
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - -8 so
Released Date Jan 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX704ESA+ Details

Manufacturer Part Number:
MAX704ESA+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-SOIC_N-150_MIL
Pin Count:
8
Manufacturer Package Code:
8-SOIC_N-150_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1999-05-28
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
BAT BUP SW:Y;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N
Adjustable Threshold:
NO
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.4V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

MAX704ESA+ Frequently Asked Questions (FAQs)

The MAX704ESA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and coupling. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
The MAX704ESA+ requires a specific bias voltage and configuration to operate correctly. It is recommended to follow the application circuit shown in the datasheet and to consult the device's evaluation board documentation for guidance on proper biasing and configuration. Additionally, it is recommended to consult with an experienced analog design engineer or to contact Analog Devices' technical support for specific guidance on configuring the device for your application.
The MAX704ESA+ is a high-precision device, but it is not immune to errors. Potential sources of error include noise, temperature drift, and component tolerances. To minimize errors, it is recommended to use a low-noise power supply, to keep the device at a stable temperature, and to use high-precision components. Additionally, it is recommended to use a calibration procedure to compensate for any errors and to ensure the device is operating within its specified tolerances.
Troubleshooting issues with the MAX704ESA+ requires a systematic approach. It is recommended to start by checking the power supply and ensuring it is within the specified range. Next, check the input and output signals to ensure they are within the specified range and that there is no noise or distortion. If the issue persists, it is recommended to consult the device's datasheet and application notes for guidance on troubleshooting specific issues. Additionally, it is recommended to use a logic analyzer or oscilloscope to capture waveforms and debug the issue.
The MAX704ESA+ is a sensitive device and requires careful thermal management to ensure it operates within its specified temperature range. It is recommended to use a heat sink or thermal pad to dissipate heat, and to ensure good airflow around the device. Additionally, it is recommended to follow the thermal design guidelines provided in the device's datasheet and to consult with a thermal design expert if necessary.

Trust Checks

Community Provided

System Verified

Community Approved

MAX704ESA+ Overview

Use the download button to access the MAX704ESA+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX70, or try a keyword search, such as Power Management Circuits
