MAX708CPA+ - Analog Devices

Description: MAX708CPA+, Processor Supervisor 4.4 V Active High, Active Low, Push-Pull, reset 8-Pin PDIP N

Download MAX708CPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

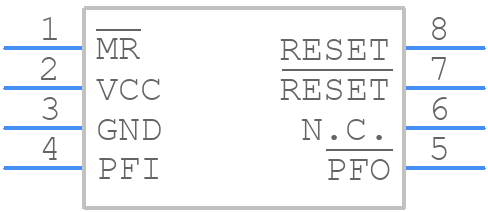

Symbol
MAX708CPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX708CPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Plastic DIP
click to zoom
3D Models
MAX708CPA+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 Plastic DIP
click to zoom

MAX708CPA+ Details

  • Manufacturer Part Number:

    MAX708CPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX708CPA+ Frequently Asked Questions (FAQs)

  • The MAX708CPA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from noise sources, using a solid ground plane, and minimizing lead lengths. Additionally, it is recommended to place the device close to the battery and use a low-ESR capacitor to filter the input voltage.
  • To ensure the MAX708CPA+ is reset properly during power-up, it is recommended to connect the RST pin to a pull-up resistor and a capacitor to VCC. This will ensure that the device is held in reset until the power supply has stabilized. Additionally, it is recommended to add a delay of at least 100ms after power-up before releasing the reset signal.
  • The MAX708CPA+ can handle input voltages up to 16V, but it is recommended to operate the device within the specified operating range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • To troubleshoot issues with the MAX708CPA+ not detecting the battery voltage correctly, check the following: ensure the battery voltage is within the specified range, check the input voltage pin for noise or oscillations, verify the correct connection of the battery voltage sense pin, and check the device's power supply voltage to ensure it is within the specified range.
  • Yes, the MAX708CPA+ can be used with a rechargeable battery. However, it is recommended to add additional circuitry to detect the battery's state of charge and prevent overcharging or over-discharging, which can damage the battery.
