MAX708RCUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX708RCUA+ - Supervisory/Monitor, Active-High/Low, Push-Pull Reset, 1V to 5.5V Supply, 2.63V Threshold, µMAX-8

Download MAX708RCUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

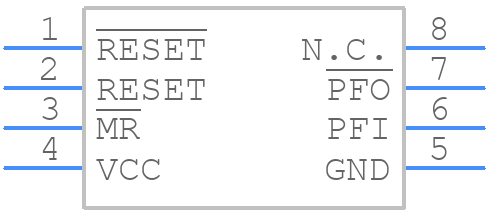

MAX708RCUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX708RCUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX708RCUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX708RCUA+ Details

  • Manufacturer Part Number:

    MAX708RCUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:Y;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX708RCUA+ Frequently Asked Questions (FAQs)

  • The MAX708RCUA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-current paths, using a solid ground plane, and minimizing trace lengths and widths.
  • The MAX708RCUA+ has a built-in POR circuit that ensures the device resets properly during power-up. To handle POR timing, ensure that the power supply ramps up slowly (typically 1-10ms) and that the reset input (RST) is tied to a capacitor to ground to filter out any noise or glitches.
  • The MAX708RCUA+ is rated for operation from -40°C to +125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking and thermal management to prevent overheating, especially in high-temperature applications.
  • The MAX708RCUA+ is designed to operate in noisy environments, but it's still important to take precautions to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Use proper shielding, grounding, and decoupling techniques to ensure reliable operation.
  • To troubleshoot issues with the MAX708RCUA+, start by verifying the power supply and clock signals. Check for proper voltage levels, clock frequency, and signal integrity. Use an oscilloscope to monitor the device's output and input signals, and consult the datasheet and application notes for guidance on specific troubleshooting techniques.
