MAX708RESA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX708RESA+T - MPU Supervisor, 1.2V-5.5V supply, Active-High/Low, Push-Pull, 0.2s delay/2.63V threshold, NSOIC-8

Download MAX708RESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

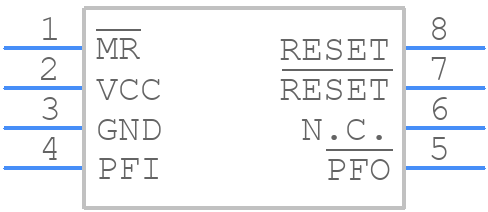

Symbol
MAX708RESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX708RESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
MAX708RESA+T - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

MAX708RESA+T Details

  • Manufacturer Part Number:

    MAX708RESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:Y;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX708RESA+T Frequently Asked Questions (FAQs)

  • The MAX708RESA+T is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from noise sources, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to place the device close to the battery and use a low-ESR capacitor to filter the input voltage.
  • To ensure the accuracy of the voltage monitoring function, it is recommended to use a high-accuracy voltage reference, such as the internal reference of the MAX708RESA+T, and to minimize the noise and interference on the voltage monitoring input pins. Additionally, it is recommended to calibrate the device during manufacturing or at power-up to account for any variations in the voltage reference.
  • The MAX708RESA+T is rated for operation over the industrial temperature range of -40°C to +85°C. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation. It is also recommended to follow the thermal management guidelines provided in the datasheet to ensure the device operates within its specified temperature range.
  • The reset output of the MAX708RESA+T is an active-low output that goes low during power-up and power-down sequences. It is recommended to connect the reset output to the reset input of the microcontroller or other devices that require a reset signal. Additionally, it is recommended to use a pull-up resistor on the reset output to ensure a clear reset signal during power-up and power-down sequences.
  • The recommended power-up sequence for the MAX708RESA+T is to apply the input voltage (VCC) first, followed by the battery voltage (VBAT). This ensures that the device powers up correctly and that the voltage monitoring function is enabled. It is also recommended to follow the power-up sequence guidelines provided in the datasheet to ensure reliable operation.
