MAX708SCSA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX708SCSA+T - MPU Supervisor, 1V-5.5V supply, Active-High/Low, Push-Pull, 0.2s delay/2.93V threshold, NSOIC-8

Download MAX708SCSA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

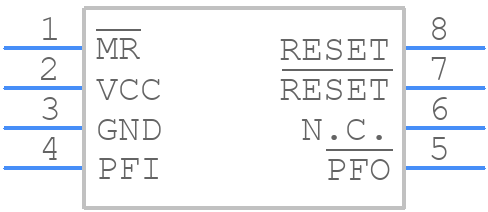

MAX708SCSA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX708SCSA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-2_2022
click to zoom
3D Models
MAX708SCSA+T - Analog Devices - 3D model - Small Outline Packages - S8-2_2022
click to zoom

MAX708SCSA+T Details

  • Manufacturer Part Number:

    MAX708SCSA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX708SCSA+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX708SCSA+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure proper powering and decoupling, connect the VCC pin to a clean, low-noise power supply, and use a 0.1uF ceramic capacitor between VCC and GND, placed as close to the device as possible. Additionally, use a 10uF bulk capacitor between VCC and GND, placed near the power supply.
  • The MAX708SCSA+T can handle clock frequencies up to 125MHz, but the actual maximum frequency may vary depending on the specific application and layout. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for a specific design.
  • To troubleshoot issues with the MAX708SCSA+T, start by verifying the power supply and decoupling, then check the clock signal and input signals. Use an oscilloscope to monitor the output and input signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX708SCSA+T is rated for operation up to 125°C, but the actual maximum operating temperature may vary depending on the specific application and environment. It's recommended to consult the datasheet and perform thermal simulations to determine the maximum operating temperature for a specific design.
