MAX708SESA+ - Analog Devices

Description: MAX708SESA+, Voltage Supervisor 2.85 → 3 V Active High, Active Low, Push-Pull, reset 8-Pin SOIC

Download MAX708SESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

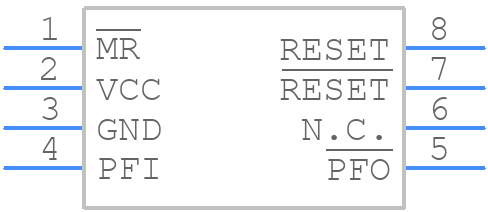

MAX708SESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX708SESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
MAX708SESA+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

MAX708SESA+ Details

  • Manufacturer Part Number:

    MAX708SESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX708SESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX708SESA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Refer to the application note AN-1120 for more details.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply power to the VCC pin first, followed by the VBAT pin. The device will automatically initialize and start operating once the power-up sequence is complete.
  • The maximum allowed voltage on the VBAT pin is 3.6V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a battery with a maximum voltage of 3.6V to ensure safe operation.
  • The MAX708SESA+ can be interfaced with a microcontroller using the I2C or SPI interface. The device operates as a slave device and requires a master device (such as a microcontroller) to initiate communication. Refer to the datasheet for the communication protocol and timing diagrams.
  • The RST pin is an active-low reset input that can be used to reset the device. When the RST pin is pulled low, the device will reset and all registers will be cleared. The RST pin can be connected to a microcontroller's reset output or a manual reset button.
