MAX709LCPA+ - Analog Devices

Description: MAX709LCPA+, Processor Supervisor 3 V, 3.3 V, 5 V Active Low, Push-Pull, 8-Pin PDIP N

Download MAX709LCPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

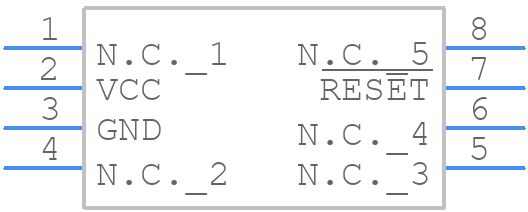

MAX709LCPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX709LCPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8+3-1
click to zoom
3D Models
MAX709LCPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8+3-1
click to zoom

MAX709LCPA+ Details

  • Manufacturer Part Number:

    MAX709LCPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX709LCPA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX709LCPA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure the MAX709LCPA+ is properly powered up and initialized, apply a clean and stable power supply to the device, and ensure that the input voltage is within the recommended operating range. The device will automatically power up and initialize when the input voltage is applied. Additionally, the EN pin should be tied to a logic high to enable the device.
  • The MAX709LCPA+ is a low-dropout linear regulator and can handle a maximum output current of 150mA. However, the maximum current handling capability may be limited by the thermal performance of the device and the PCB. It is recommended to ensure that the device is properly heatsinked and the PCB is designed to handle the maximum expected current.
  • The output voltage of the MAX709LCPA+ can be adjusted by connecting a resistive divider network between the output pin and the ADJ pin. The resistive divider network sets the output voltage according to the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage, and R1 and R2 are the resistors in the divider network.
  • The EN pin on the MAX709LCPA+ is an active-high enable input that allows the device to be shut down or enabled. When the EN pin is tied to a logic low, the device is shut down and the output voltage is disabled. When the EN pin is tied to a logic high, the device is enabled and the output voltage is regulated to the set value.
